| SIZE: | 1/2″ - 6″ | Design: | GB/T12237/1989 |
|---|---|---|---|
| Working Pressure: | PN16/40 | Suitable Medium: | Water,Oil,Gas,and Some Corrosive Liquid |
| Material: | SS304,SS316,WCB,CF8,CF8M | Operation: | Lever,Wrench |
| Connection: | Flanged RF,Wafer | ||
| Highlight: | fire safe ball valve,floating ball valve |
||

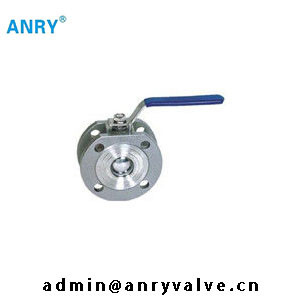

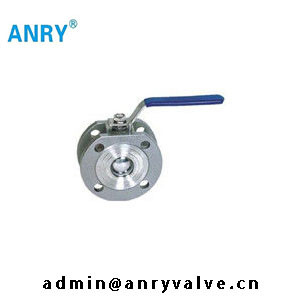

SS316 CF8M Body PTFE Viton Seat Flanged End RF Wafer Ball Valve
Flanged End Wafer Ball Valve
Working Pressure:PN16/40
Temperature Range:-20-250°C
Suitable medium:Water,Oil,Gas,and some corrosive liquid
Design:GB/T12237/1989
End Flange:JB79
Fire Safe:API 607 th 1993
Inspection & Testing:GB/T13927-1992
Main part material
| No. | Part name | Material | ||
| 1 | Body | A351-CF8 | A351-CF8M | WCB |
| 2 | Ball | SS316 | SS304 | SS304 |
| 3 | Seat | PTFE | PTFE | PTFE |
| 4 | Gasket | PTFE | PTFE | PTFE |
| 5 | Stem | SS316 | SS304 | SS304 |
| 6 | Gland packing | SS304 | SS304 | SS304 |
| 7 | Bolt and nut | SS304 | SS304 | SS304 |
Dimensions
| SIZE | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | 5″ | 6″ |
| d | 15 | 19 | 23.5 | 30 | 36 | 45 | 58 | 67 | 76 | 100 | 125 |
| L | 32 | 38.5 | 45 | 55 | 62 | 72 | 95 | 120 | 145 | 200 | 225 |
| D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 |
| D2 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 155 | 185 | 210 |
| H | 62 | 70 | 79 | 86 | 92 | 102 | 158 | 172 | 187 | 200 | 240 |
| E | 110 | 125 | 135 | 150 | 150 | 180 | 250 | 300 | 350 | 650 | 840 |
| b | 14 | 14 | 16 | 16 | 18 | 20 | 22 | 24 | 24 | 26 | 26 |
| z-d1 | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 |
| f | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
