| Name: | DIN CS Globe Valve | Pressure: | PN16,PN25,PN40 |
|---|---|---|---|
| Size: | DN15-DN600 | Material: | WCB,SS304,SS316,CF8,CF8M |
| Connection: | Flanged RF | Operation: | Handwheel,gear |
| High Light: | wcb globe valve,fire safe ball valve |
||

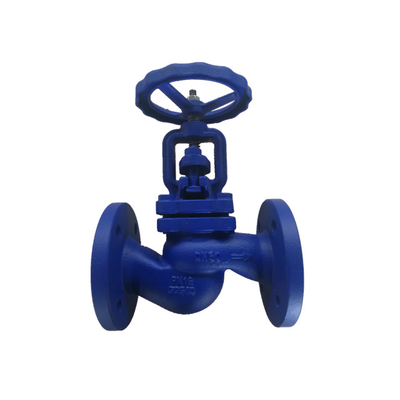

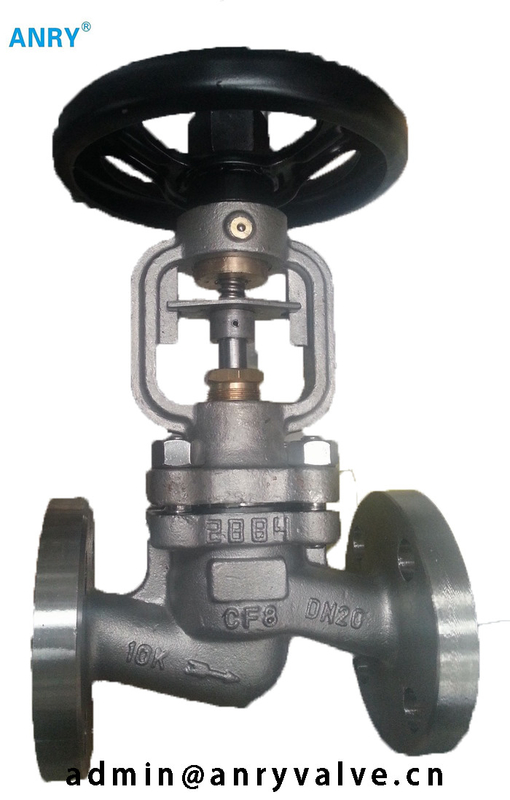

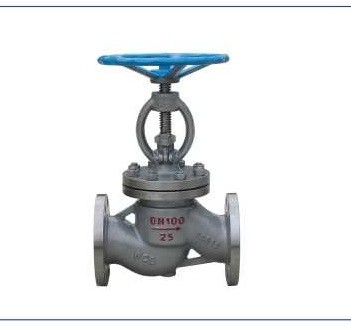

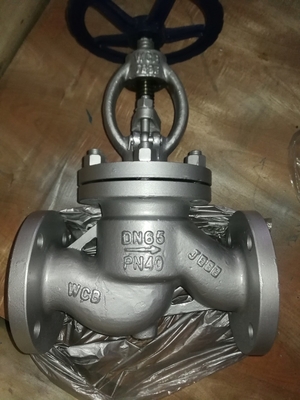

DIN PN16/40 Globe Valve Flanged End
Body:Carbon Steel/Stainless Steel
Face to Face:DIN3202
Flange End:EN1092-1
Design:EN13709
Test:EN12266
| Body/Bonnet | Stem | Disc | Seat |
| GS-C25 | SS410 | SS410 | SS410 |
| A351-CF8 | SS304 | SS304 | SS304 |
| A351-CF8 M | SS316 | SS316 | SS316 |
| Nominal Pressure | 1.6Mpa | 2.5Mpa | 4.0Mpa |
| Shell Pressure | 2.4Mpa | 3.6Mpa | 6.0Mpa |
| Seat Pressure | 1.8Mpa | 2.8Mpa | 4.4Mpa |
| Suitable Medium | W.O.G. | ||
| Suitable Temperature |
-20℃~350℃ |
||
| DN | L | H | W | Wt. | |||
| PN16 25 | PN40 | PN16 | PN25 | PN40 | |||
| 15 | 130 | 191 | 120 | 140 | 3.7 | 4.3 | 4.3 |
| 20 | 150 | 191 | 120 | 140 | 4.4 | 4.8 | 4.8 |
| 25 | 160 | 197 | 140 | 140 | 5.1 | 6.3 | 6.3 |
| 32 | 180 | 200 | 140 | 160 | 7.5 | 7.8 | 7.8 |
| 40 | 200 | 218 | 160 | 180 | 8.8 | 10.3 | 10.3 |
| 50 | 230 | 220 | 180 | 180 | 12.2 | 12.6 | 12.6 |
| 65 | 290 | 238 | 180 | 200 | 16.1 | 19 | 19 |
| 80 | 310 | 257 | 200 | 250 | 21.4 | 25 | 25 |
| 100 | 350 | 340 | 250 | 300 | 33 | 35 | 35 |
| 125 | 400 | 360 | 300 | 350 | 51 | 56 | 56 |
| 150 | 480 | 390 | 300 | 350 | 69 | 74 | 74 |
| 200 | 600 | 530 | 400 | 450 | 105 | 144 | 160 |
| 250 | 730 | 665 | 520 | 520 | 180 | 238 | 260 |
| 300 | 850 | 720 | 520 | 520 | 265 | 339 | 370 |
