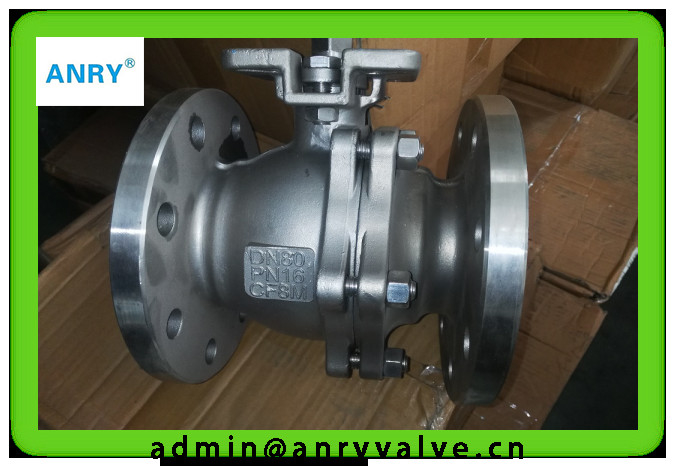

PTFE Seat Floating Ball Valve Flanged RF WCB Body Fire Safe

Name: PTFE Seat Floating Ball Valve Flanged RF WCB Body Fire Safe
Brand: ANRY
SKU: Q41F
Price: 1.00 USD
Availability: InStock
Rating: 5 (198 reviews)

Large Image : PTFE Seat Floating Ball Valve Flanged RF WCB Body Fire Safe Get Best Price

Product Details:

Place of Origin:	WENZHOU
Brand Name:	ANRY
Certification:	API,CE,ISO
Model Number:	Q41F

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Plywood case
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Name:

Ball Valve

Material:

Stainless Steel

Class:

Class150 Class300 Class600 Class900

Application:

General

High Light:

wcb globe valve

fire safe ball valve

Flanged RF WCB Body SS304 Ball PTFE Seat Floating Ball Valve

The Usage of API SS flanged ball valve DN32 class150 class300 class600 class 900

This API SS flanged ball valve DN32 class150 class300 class600 class900 is applies to the nitric acid type etc pipeline which is corrosive medium and the pipeline must be the working temperature ≤ 150 °C .It is used by open/close ,its biggest advantage is quickly opening and shutting.

The mateirals of API SS flanged ball valve DN32 class150 class300 class600 class900

Parts name			Material
Valve body,Bonnet			stainless steel
ball,stem			2Cr13
seal ring			F4,stainless steel

The measurements of API SS flanged ball valve DN32 class150 class300 class600 class900

DN	Flange End(JB/T971)												Clamp End
DN	d	L	H	D	D1	D2	f	a	D3	Z	d1	W	D	D4	L1
15	150	130	77	95	65	45	2	4	40	4	14	130	43.5	50.5	108
20	200	150	77	105	75	55	2	4	51	4	14	130	43.5	50.5	130
25	250	160	88	115	85	65	2	4	58	4	14	130	43.5	50.5	138
32	32	180	113	135	100	78	2	4	66	4	18	180	43.5	50.5	152
40	40	200	132	145	110	85	3	4	76	4	18	230	56.5	64	166
50	50	230	142	160	125	100	3	4	88	4	18	400	56.5	64	198
65	65	290	173	180	145	120	3	4	110	4/8	18	400	83.5	91	230
80	80	310	182	190	160	135	3	40	121	4/8	18	640	96	106	249
100	100	350	250	215/230	180/190	122/160	3	4.5	150	4/8

Packaging & Shipping

For the flange, generally we use the wooden box and wooden pallet with plastic film, for the API SS flanged ball valve class150 class300 class600 class900 , we can use those two type, and also we use the Woven bag. In addtion, we can change the shape of the packaging according to customer requirements.

PTFE Seat Floating Ball Valve Flanged RF WCB Body Fire Safe 0

PTFE Seat Floating Ball Valve Flanged RF WCB Body Fire Safe 1

PTFE Seat Floating Ball Valve Flanged RF WCB Body Fire Safe 2
