Name: | Flanged Gate Valve | Application: | General |
---|---|---|---|
Structure: | Gate | Connection: | Flange Ends |
Material: | Casting,Stainless Steel | Media: | Water,Oil,Gas,Steam |
Power: | Manual,Pneumatic,Electric,Handwheel Operated | Pressure: | Medium Pressure,Low Pressure,PN1.6 To 6.4MPa |
Temperature Of Media: | Medium Temperature,Normal Temperature | Port Size: | 1-1/2"~48",DN40-DN800 |
Product Name: | GATE VALVE,Manual Slide Sluice Gate Valve,THT Different Sizes And Materials Gate Valve With Prices | Standard: | ANSI BS DIN JIS,Gost Russia Standard,EN593,API600 |
Body Material: | Carbon Steel,Stainless Steel 316,WCB | Working Pressure: | 1bar - 40 Bar,1.0MPa-2.5MPa,1.0-1.6Mpa (10-25bar) |
Size: | DN50 To DN1200,1-1/2"~48" | Medium: | Base Oil Water Gas,Water Oil Gas Air Etc.,gas,Water,oil |
Face To Face: | ASME B16.10 | ||
High Light: | industrial gate valve,rising stem gate valve |

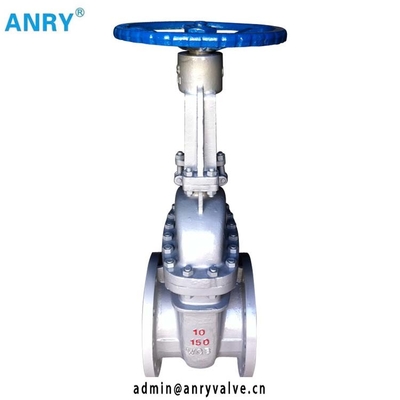

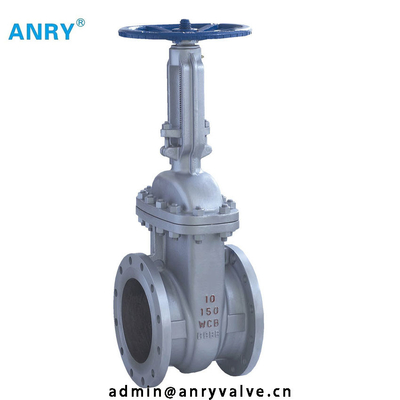

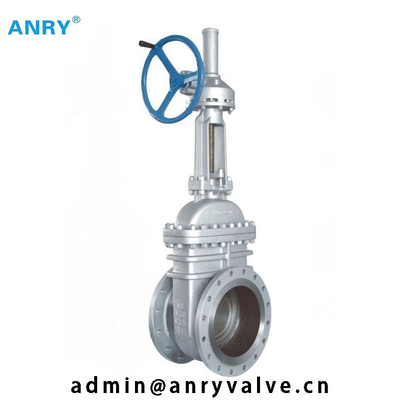

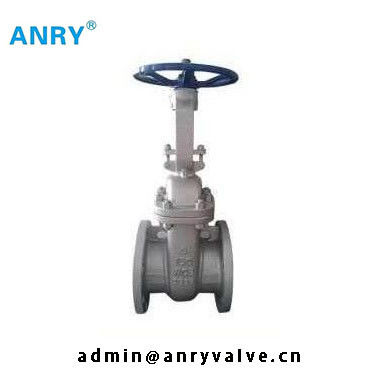

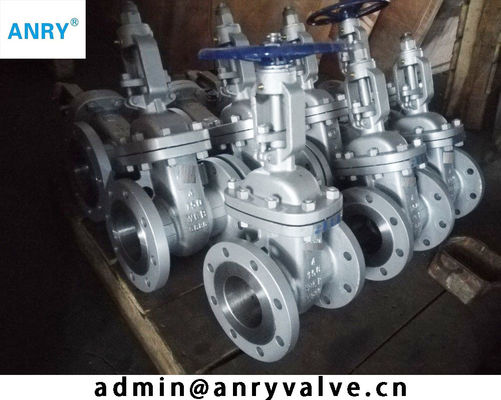

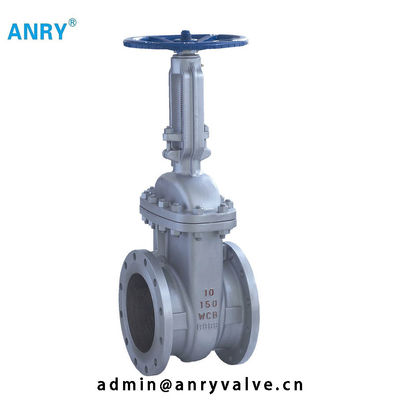

Class 150~1500 Cast Steel Gate Valve
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet,Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M, A352 LCB
Technical parameters :
Standards compliance
Design and Manufacture: ANSI B16.34, API600 API6D, API603, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5
22",26"~36" to MSS-SP-44 or to API605 on Request
Test and inspection: API598, API6D

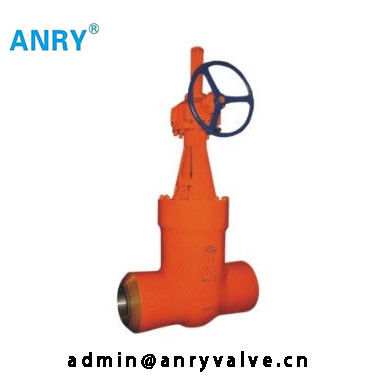

Butt welded end: ANSI B16.5
A. Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation
B. Grub screw:Secures yoke nut in the bonnet
C. Grease nipple:Supplies lubricant to the mating parts
