Product Details:
Payment & Shipping Terms:
|
| Name: | Thread Ball Valve | Thread Type: | G.NPT.BSPT.BSP.DIN259/2999 |
|---|---|---|---|
| Medium: | Water,Oil,air And Some Corrosive Liqid | Pressure: | 50PSl |
| Structure: | Ball,full Port,Shutoff | Material: | Stainless Steel,Plastic,WCB |
| Power: | Manual,Pneumatic,Electric,motorized | Temperature Of Media: | Normal Temperature,Medium Temperature,Low Temperature |
| Media: | Water,oil,Gas,Air,Liquid | Port Size: | 1/2"-4" |
| Application: | General,Household Usage,SGS,Industrial Usage | Product Name: | Hydraulic Ball Valve,Wholesale Professional Plastic PVC/UPVC Ball Valve,New Mould Ppr Fittings Double Union Plastic Ball Valve,UPVC Manual Ball Valve,UPVC True Union Ball Valve |
| Body Material: | Brass,Stainless Steel 316,pvc/upvc,304 | Size: | 1/8"~4",DN15 To DN50 |
| Standard: | DIN,ASTM,ANSI,DIN/ JIS / ANSI /BS/CNS | Working Pressure: | 3000PSI,0-10 Bar,0-16bar |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female | Usage: | Control Water Flow |
| Seal Material: | PTFE,Silicon,VITON | ||

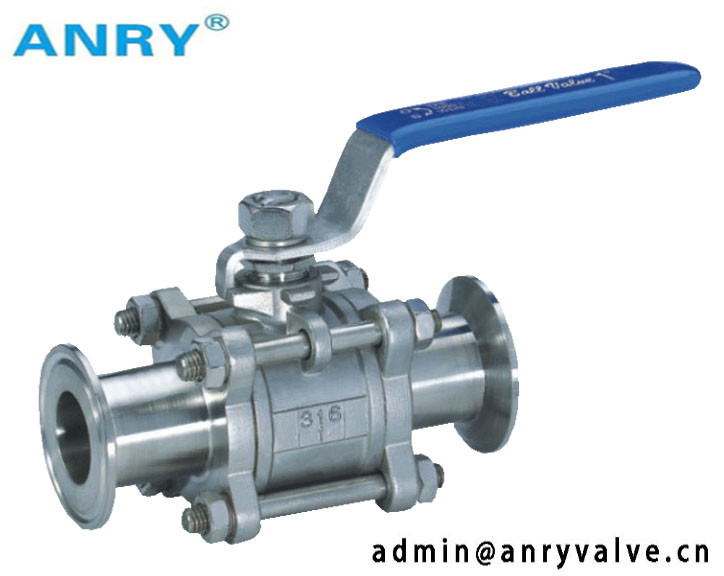

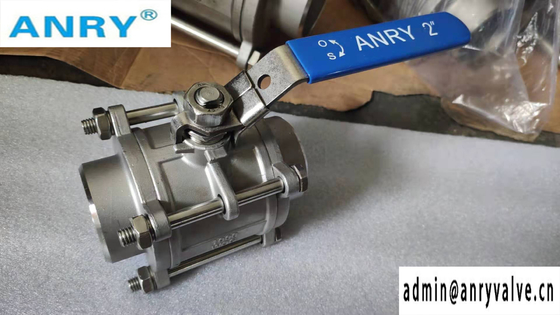

| High Light: | CF8M threaded end ball valve,FNPT threaded end ball valve,3PCS stainless steel threaded ball valve |
||
|
NO.
|
Part Name
|
Material
|
|
|
Stainless steel
|
Carbon steel
|
||
|
1
|
Body
|
304/316
|
WCB
|
|
2
|
Joint ring
|
PTFE
|
PTFE
|
|
3
|
Cap
|
304/316
|
WCB
|
|
4
|
Ball
|
304/316
|
304/316
|
|
5
|
Stem
|
304/316
|
304/316
|
|
6
|
Nut
|
304
|
FCD45
|
|
7
|
Washer
|
304
|
FCD45
|
|
8
|
Handle cover
|
Plastic
|
Plastic
|
|
9
|
Handle
|
304
|
304
|
|
10
|
Stem nut
|
304
|
B7
|
|
11
|
Stem washer
|
304
|
304
|
|
12
|
Gland nut
|
304
|
FCD45
|
|
13
|
Stem packing
|
PTFE
|
PTFE
|
|
14
|
Thrust washer
|
PTFE
|
PTFE
|
|
15
|
Joint gasket
|
PTFE
|
PTFE
|
|
16
|
Bolt
|
304
|
B8
|
|
SIZE
|
1/4"
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
|
D
|
11.6
|
12.7
|
15
|
20
|
25
|
32
|
38
|
50
|
65
|
80
|
100
|
|
L
|
68
|
68
|
72
|
85
|
90
|
112
|
120
|
145
|
185
|
210
|
268
|
|
H
|
100
|
100
|
130
|
130
|
165
|
165
|
190
|
190
|
250
|
250
|
280
|
|
E
|
100
|
100
|
130
|
130
|
165
|
165
|
190
|
190
|
250
|
250
|
280
|
|
WT(g)
|
400
|
405
|
640
|
890
|
1160
|
2195
|
2940
|
4860
|
7000
|
10700
|
19350
|
