Product Details:
Payment & Shipping Terms:
|
| Media: | Water,Gas,Acid,Liquid | Material: | Stainless Steel,Casting,iron,SS304L SS316,WCB |
|---|---|---|---|
| Pressure: | Medium Pressure,Low Pressure,PN1.6 To 6.4MPa | Standard: | DIN,ANSI BS DIN JIS,ASTM |
| Connection: | Clamp | Body Material: | Stainless Steel,Cast Steel,Cast Iron/Ductile Iron/Stainless Steel/Carbon Steel/ASTM A216 WCB,Ductile Iron(Cast Iron) |
| Medium: | Water,Acid,Gas,Seawater | Size: | DN50-DN2000 |
| Working Pressure: | 150LB(PN10~PN16),1.0-1.6Mpa (10-25bar),150LB | ||
| High Light: | PN16 Stainless Steel Butterfly Valve,PN16 double eccentric butterfly valve,Double Eccentric Steel Butterfly Valve |
||
Specifications:

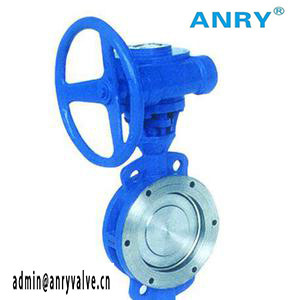

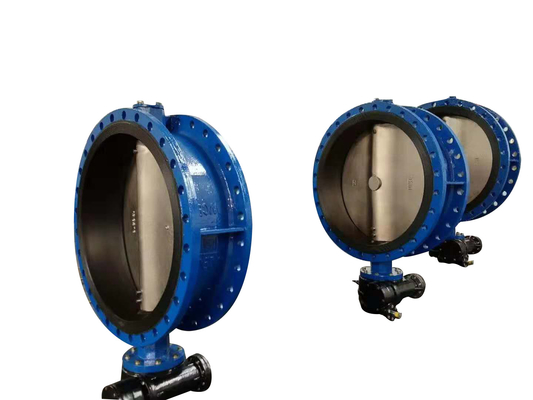

Double Eccentric flanged Butterfly Valve with gearbox and handwheel
Butterfly Valve is a kind of simple structure, at the same time it can be used for low pressure pipeline medium switch control., serve as cut off and throttling in the pipeline.
Material:
The body material: GG25/GGG40/GGG50
The disc material: DI+Nylon/SS304+Nylon/SS316+Nylon/AL-BZ+Nylon
The stem material:SS410/SS416/SS420/SS304/SS316
The seat material: NBR/EPDM/PTFE/VITON
Design Standard:
API 609/ISO 5752/BS5155
Pressure :
ANSI 125#/150#; JIS5K/10K/16K; DIN 2501 PN6/PN10/PN16/; BS4504 PN10/PN16
Usage and features:
Nylon board butterfly valve structure without pin, excellent reduction, self-lubricity, operating torque 40% less than normal butterfly valve. Good abrasion resistance, sealing butterfly valve can be significantly prolongs the service life, compared with the average life-span, line butterfly valve can lengthen 3 times.
Nylon have excellent performance, alkali, salt resistance to erosion and weak organic compounds, adapt to a wide range of inertia. Advanced without pin connections, guarantee the media and metal completely isolated, improve the product's reliability, simple maintenance of butterfly valves
