Product Details:
Payment & Shipping Terms:
|
| Power: | Manual | Media: | Water,Gas,Acid,Liquid |
|---|---|---|---|
| Material: | Casting,iron,SS304L SS316,WCB | Pressure: | Medium Pressure,Low Pressure,PN1.6 To 6.4MPa |
| Structure: | Butterfly | Temperature Of Media: | Medium Temperature,Normal Temperature |
| Application: | General,Sea Water | Port Size: | Standard,DN15-200 &1/2"-8" |
| Product Name: | KEFA Pinless Stainless Steel Wafer Butterfly Valve With Soft Seat,Metal Seat Butterfly Valve,Stainless Steel 304 316 Manual Clamp Sanitary Butterfly Valve,Stainless Steel Flange Butterfly Valve Price List,PTFE BUTTERFLY VAVLE | Standard: | DIN,ANSI BS DIN JIS,ASTM |
| Connection: | Weld,flange,Clamp | Body Material: | Stainless Steel,Cast Steel,Cast Iron/Ductile Iron/Stainless Steel/Carbon Steel/ASTM A216 WCB,Ductile Iron(Cast Iron) |
| Medium: | Water,Acid,Gas,Seawater | Size: | DN50-DN2000 |
| Working Pressure: | 150LB(PN10~PN16),1.0-1.6Mpa (10-25bar),150LB | Valve Type: | Tripe Offset Butterfly Valve,Wafer Butterfly Valve,Concentric,Wafer Type |
| High Light: | butt welded gate valve,wafer butterfly valve |
||

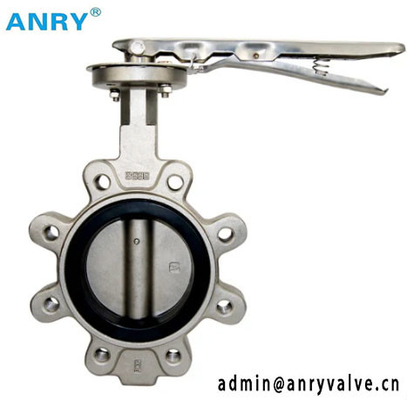

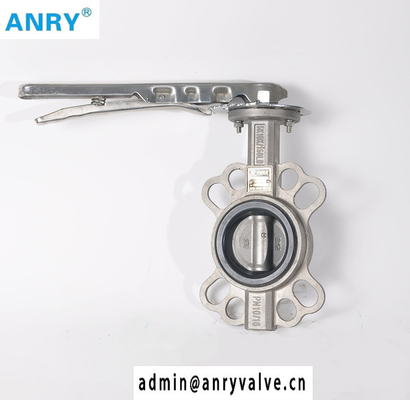

Casted Iron Body Soft Sealing Seats SS304 Disc Wafer Butterfly Valve
Specifications:
Butterfly Valve is a kind of simple structure, at the same time it can be used for low pressure pipeline medium switch control., serve as cut off and throttling in the pipeline.
End Connection: Wafer, JIS 10K
Body Material: Cast Iron
Liner: NBR / EPDM
Operating: Lever / Gear
Size: 2" - 24"
Material:
The body material: GG25/GGG40/GGG50
The disc material: DI+Nylon/SS304+Nylon/SS316+Nylon/AL-BZ+Nylon
The stem material:SS410/SS416/SS420/SS304/SS316
The seat material: NBR/EPDM/PTFE/VITON
Design Standard:
API 609/ISO 5752/BS5155
Pressure :
ANSI 125#/150#; JIS5K/10K/16K; DIN 2501 PN6/PN10/PN16/; BS4504 PN10/PN16
Usage and features:
Nylon board butterfly valve structure without pin, excellent reduction, self-lubricity, operating torque 40% less than normal butterfly valve. Good abrasion resistance, sealing butterfly valve can be significantly prolongs the service life, compared with the average life-span, line butterfly valve can lengthen 3 times.
Nylon have excellent performance, alkali, salt resistance to erosion and weak organic compounds, adapt to a wide range of inertia. Advanced without pin connections, guarantee the media and metal completely isolated, improve the product's reliability, simple maintenance of butterfly valves
