Power: | Manual | Media: | Water,Gas,Acid,Liquid |
---|---|---|---|
Material: | Stainless Steel,Casting,iron,SS304L SS316,WCB | Pressure: | Medium Pressure,Low Pressure |
Structure: | Butterfly | Temperature Of Media: | Medium Temperature,Normal Temperature |
Application: | General,Sea Water | Product Name: | KEFA Pinless Stainless Steel Wafer Butterfly Valve With Soft Seat,Metal Seat Butterfly Valve,Stainless Steel 304 316 Manual Clamp Sanitary Butterfly Valve,Stainless Steel Flange Butterfly Valve Price List,PTFE BUTTERFLY VAVLE |
Standard: | DIN,ANSI BS DIN JIS,ASTM | Connection: | Weld,flange,Clamp |
Body Material: | Stainless Steel,Cast Steel,Cast Iron/Ductile Iron/Stainless Steel/Carbon Steel/ASTM A216 WCB,Ductile Iron(Cast Iron) | Medium: | Water,Acid,Gas,Seawater |
Size: | DN50-DN2000 | Working Pressure: | 300LB,150LB(PN10~PN16),1.0-1.6Mpa (10-25bar),150LB |
Valve Type: | Wafer Butterfly Valve,Wafer Type | ||
High Light: | epdm lined butterfly valves,disc butterfly valve |
Specifications:

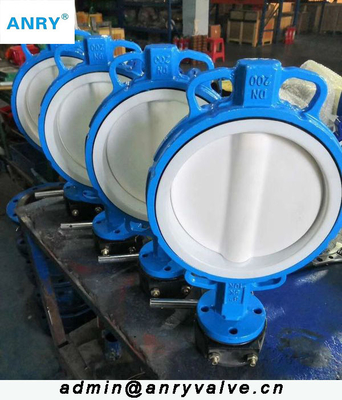

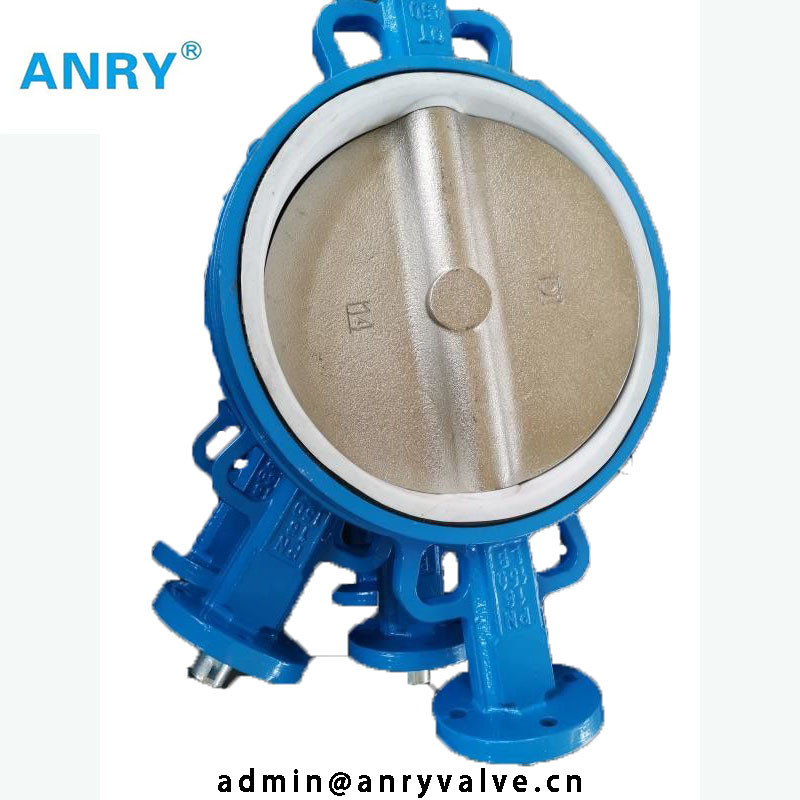

Butterfly Valve is a kind of simple structure, at the same time it can be used for low pressure pipeline medium switch control., serve as cut off and throttling in the pipeline.
Material:
The body material: GG25/GGG40/GGG50
The disc material: DI+Nylon/SS304+Nylon/SS316+Nylon/AL-BZ+Nylon
The stem material:SS410/SS416/SS420/SS304/SS316
The seat material: NBR/EPDM/PTFE/VITON
Design Standard:
API 609/ISO 5752/BS5155
Pressure :
ANSI 125#/150#; JIS5K/10K/16K; DIN 2501 PN6/PN10/PN16/; BS4504 PN10/PN16
Usage and features:
Nylon board butterfly valve structure without pin, excellent reduction, self-lubricity, operating torque 40% less than normal butterfly valve. Good abrasion resistance, sealing butterfly valve can be significantly prolongs the service life, compared with the average life-span, line butterfly valve can lengthen 3 times.
Nylon have excellent performance, alkali, salt resistance to erosion and weak organic compounds, adapt to a wide range of inertia. Advanced without pin connections, guarantee the media and metal completely isolated, improve the product's reliability, simple maintenance of butterfly valves
