Product Details:
Payment & Shipping Terms:
|

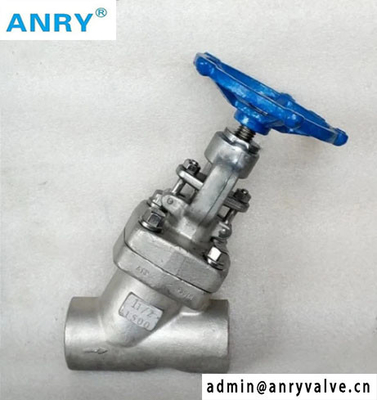

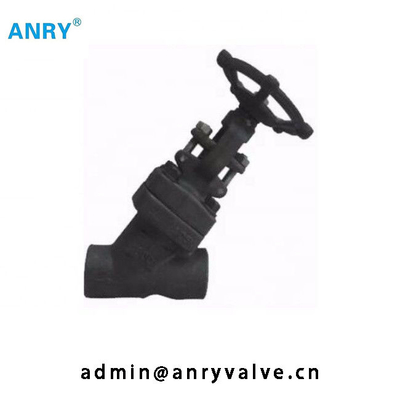

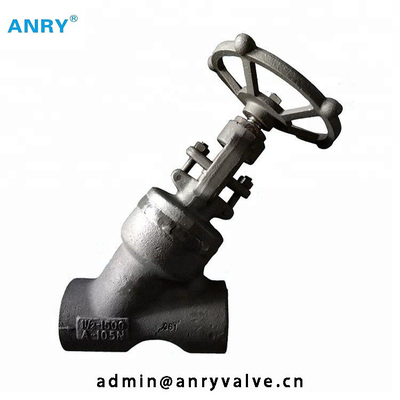

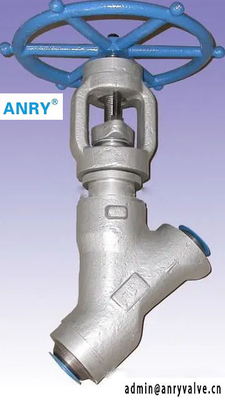

| Name: | Y Type Globe Valve | Pressure: | 800Lb |
|---|---|---|---|
| Media: | Water | Application: | General |
| Standard Or Nonstandard: | Standard | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Structure: | Control | Material: | Stainless Steel,Casting,Forged,CF8 |
| Body Material: | Carbon Steel,stainless Steel 316,SS 316 Or As Requested,316L;Alloy ; Brass; Carbon Steel. | Connection: | Female Thread,ferrule Or Thread,flanged,RF/BW,NPT |
| Standard: | ANSI BS DIN JIS,API,API598-2009,ISO | Size: | DN15 To100,1/2 Inch- 2 Inch |
| High Light: | forged steel globe valve,extended body gate valve |
||
|
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
|
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
||
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
2
|
Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
3
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
4
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
||
|
5
|
Bonnet
|
A105
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
6
|
Bonnet Bolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
7
|
Stem Packing
|
Flexible Graphite
|
PTFE
|
||
|
8
|
Gland
|
A276 410
|
A182 F304(L)
|
A182 F316(L)
|
|
|
9
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
||
|
10
|
Handwheel
|
A197
|
|||
|
11
|
Nameplate
|
SS
|
|||
|
12
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
13
|
Yoke Nut
|
A276 410
|
|||
|
14
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
15
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
16
|
Pin
|
A276 420
|
A276 304
|
||
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3,CH3OOH etc
|
||
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
||
|
NPS
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
L
|
98
|
111
|
120
|
140
|
140
|
170
|
|
H(OPEN)
|
175
|
215
|
254
|
305
|
305
|
365
|
|
W
|
100
|
125
|
160
|
160
|
180
|
200
|
|
Weights
|
5
|
6.3
|
7.6
|
9.8
|
13.8
|
14.0
|
