Product Details:
Payment & Shipping Terms:
|
| Application: | General | Name: | Forged Gate Valve |
|---|---|---|---|
| Body Material: | Forged Steel | Color: | Customer's Request |
| Pressure: | High Pressure,Class 2500 | Power: | Manual,Pneumatic,Solenoid,Electrical Actuated |
| Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) | Media: | Water,Gas,Oil,gas;air;water;oil |
| Structure: | Gate | Port Size: | DN15-DN65 |

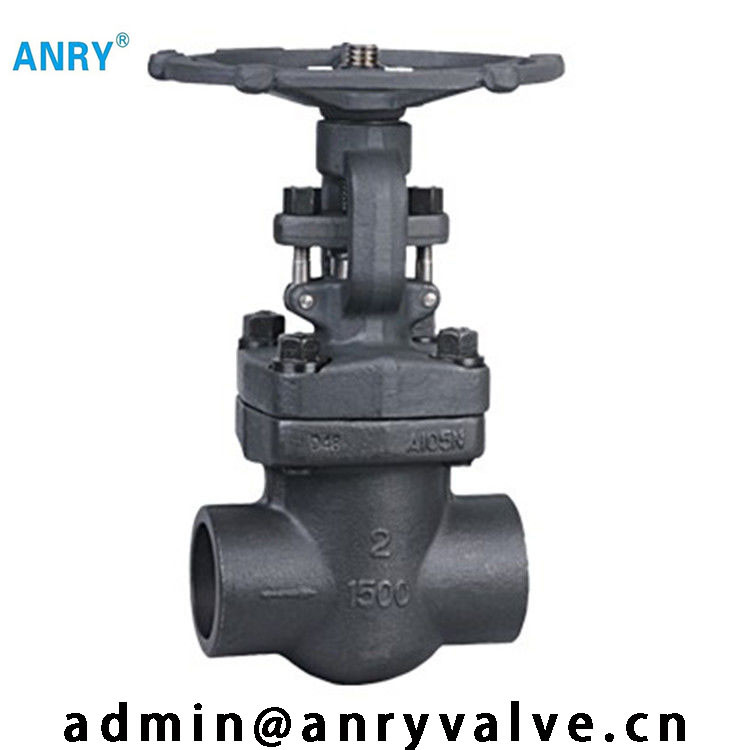

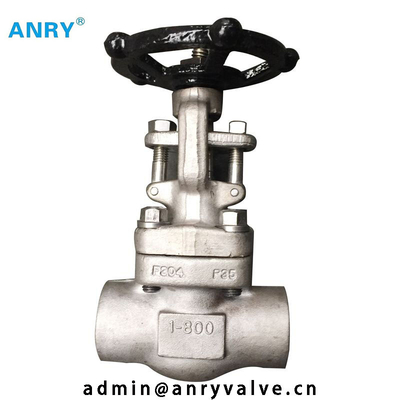

| Material: | Forged | Product Name: | Forged Steel Flanged End Gate Valve With Class 1500 Class 800 |
| Connection: | Female Thread,ferrule Or Thread,RF/BW,NPT | Standard: | ANSI BS DIN JIS,API,ISO |
| Size: | 1/2 Inch- 2 Inch | ||
| Highlight: | forged steel globe valve,extended body gate valve |
||
|
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
|
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
||
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
2
|
Seat Ring
|
A276 420
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
3
|
Wedge
|
A276 430&410
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
4
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
5
|
Gasket
|
Corrugated SS+graphite
|
SS+PTFE
|
||
|
6
|
Bonnet
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
7
|
Bonnet Bolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
8
|
Pin
|
A276 420
|
A182 F304
|
||
|
9
|
Gland
|
A276 410
|
A182 F304(L)
|
A182 F316(L)
|
|
|
10
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
11
|
Gland Flange
|
A105
|
A182 F11
|
A182 F304(L)
|
A182 F316(L)
|
|
12
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
13
|
Yoke Nut
|
A276 420
|
|||
|
14
|
H.W.Lock Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
15
|
Nameplate
|
SS
|
|||
|
16
|
Handwheel
|
A197
|
|||
|
17
|
Bearing Gasket
|
A473 431
|
|||
|
18
|
Stem Packing
|
Flexible Graphite
|
PTFE
|
||
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3,CH2OOH etc
|
||
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
||
|
NPS
|
Conv.
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
|
|
Full
|
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
||
|
L
|
79
|
79
|
92
|
111
|
120
|
120
|
140
|
178
|
||
|
H(OPEN)
|
158
|
158
|
169
|
197
|
236
|
246
|
283
|
330
|
||
|
W
|
100
|
100
|
100
|
125
|
160
|
160
|
180
|
200
|
||
|
Weights
|
Bolted
|
2.1
|
2.0
|
2.3
|
4.3
|
5.9
|
6.9
|
11.1
|
15.2
|
|
|
Welded
|
1.8
|
1.7
|
2.0
|
3.8
|
5.1
|
6.1
|
10.2
|
14.2
|
||
