| Application: | General | Name: | Forged Gate Valve |
|---|---|---|---|
| Body Material: | Forged Steel | Color: | Customer's Request |
| Material: | Casting,Stainless Steel | Media: | Water,Oil,Gas |
| Power: | Manual,Handwheel Operated | Pressure: | Medium Pressure,PN1.6 To 6.4MPa,PN16 PN25 PN40 |
| Structure: | Gate,Rising Stem Gate Valve | Temperature Of Media: | Medium Temperature,Normal Temperature |
| Port Size: | 2"-48",1-1/2"~48",DN40-DN800 | Product Name: | GATE VALVE,Manual Slide Sluice Gate Valve,THT Different Sizes And Materials Gate Valve With Prices |
| Standard: | ANSI BS DIN JIS,DIN,Gost Russia Standard,API600 | Working Pressure: | 1bar - 40 Bar,1.0MPa-2.5MPa,PN10/16Bar,1.0-1.6Mpa (10-25bar) |
| Connection: | Flange Ends,Flange Connection | Size: | DN50 To DN1200,1-1/2"~48" |
| Medium: | Base Oil Water Gas,gas,Water,oil | Working Temperature: | -40℃~550℃ |
| Face To Face: | ASME B16.10,DIN3202/ISO5752,BS 5163;DIN 3202 F4 | ||
| High Light: | industrial gate valve,rising stem gate valve |
||

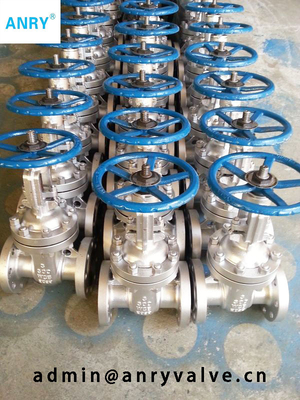

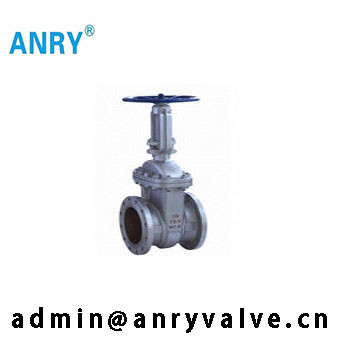

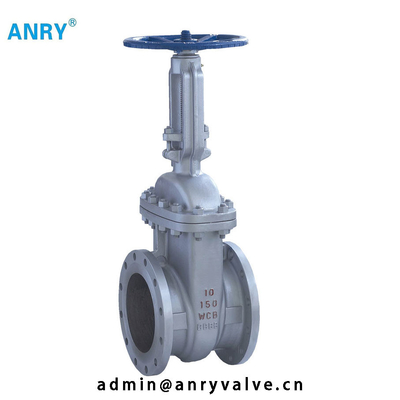

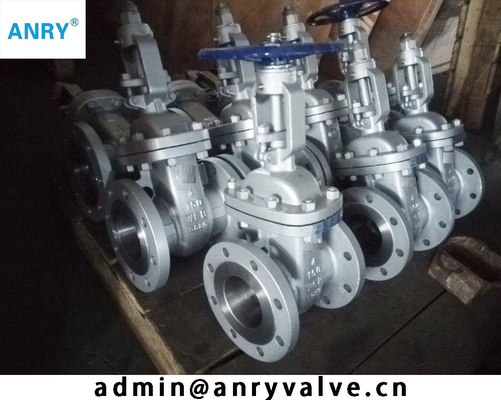

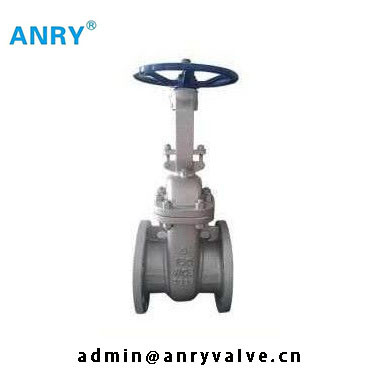

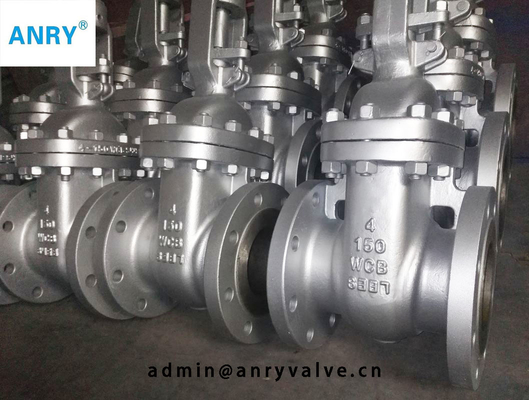

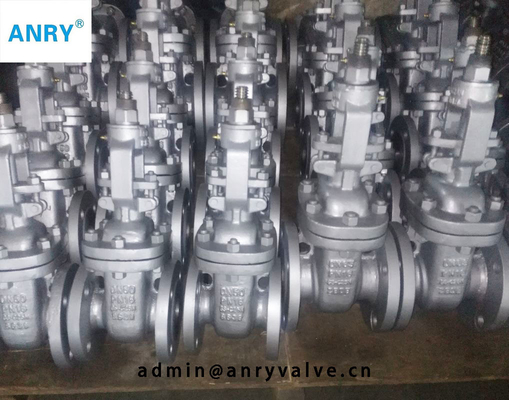

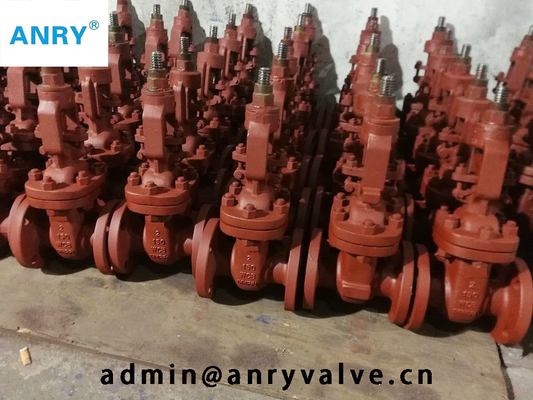

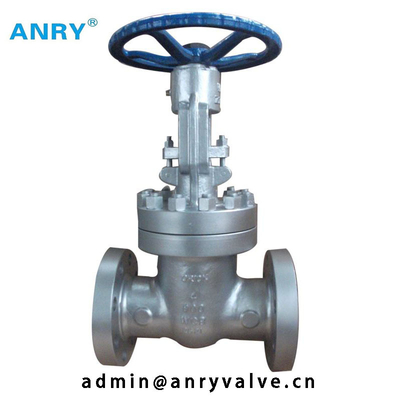

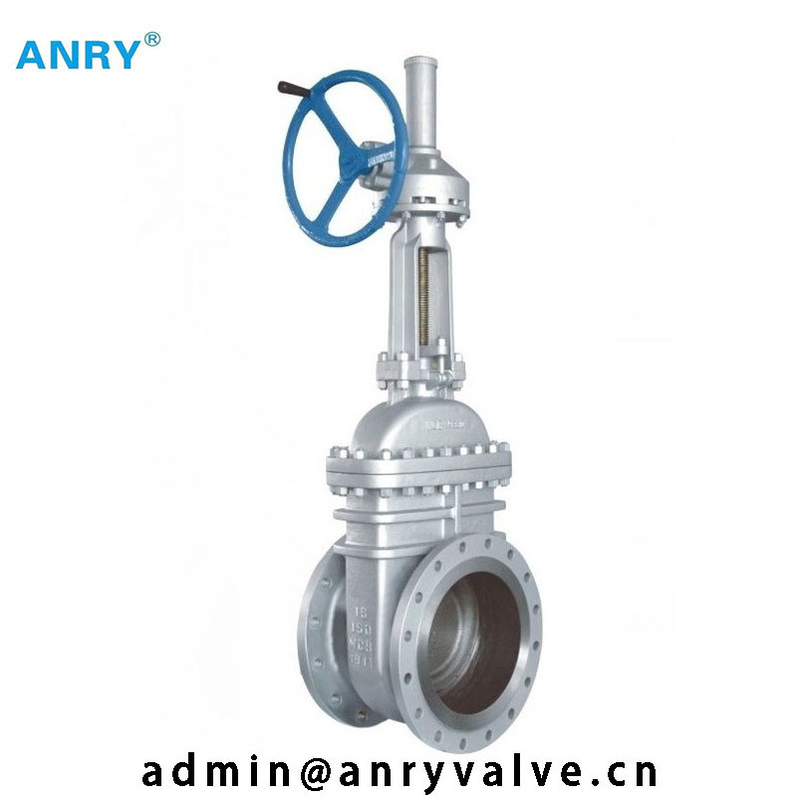

Class 150~1500 Cast Steel Gate Valve
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet,Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M, A352 LCB
Technical parameters :
Standards compliance
Design and Manufacture: ANSI B16.34, API600 API6D, API603, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5
22",26"~36" to MSS-SP-44 or to API605 on Request
Test and inspection: API598, API6D

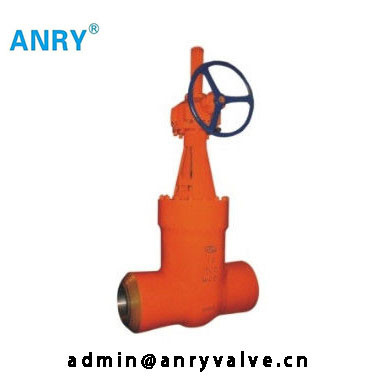

Butt welded end: ANSI B16.5
A. Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation
B. Grub screw:Secures yoke nut in the bonnet
C. Grease nipple:Supplies lubricant to the mating parts
