| Class: | 800-1500 Lb | Size: | 1/4 - 2 Inch |
|---|---|---|---|
| Structure Features: | Bolted Bonnet; Three-piece; | Name: | 3pc Forged Steel Ball Valve |
| Pressure: | High Pressure,Medium Pressure,150LB-600LB,Class 2500 | Power: | Manual,Hydraulic,Solenoid,Electrical Actuated |
| Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-20- 180°c | Media: | Water,Gas,Oil,Acid,gas;air;water;oil |
| Structure: | Ball | Port Size: | 1/2"-12",DN15-DN65 |
| Material: | Stainless Steel,Forged | Application: | General,Water,Oil,industrial |
| Product Name: | Flange Ball Valve,Stainless Steel 316 Forged 6000PSI Threaded Double Ferrule Ball Valve | Body Material: | Carbon Steel,stainless Steel 316,SS 316 Or As Requested,316L;Alloy ; Brass; Carbon Steel. |
| Connection: | Female Thread,ferrule Or Thread,NPT | Standard: | ANSI BS DIN JIS,API,API598-2009,ISO |
| Working Pressure: | 6000PSI,Normal Pressure | Type: | Ball Valve |
| Seat: | Peek,hard Seat Or Soft Seat Available,SS304 | ||
| High Light: | extended body gate valve,bw ball valve |
||

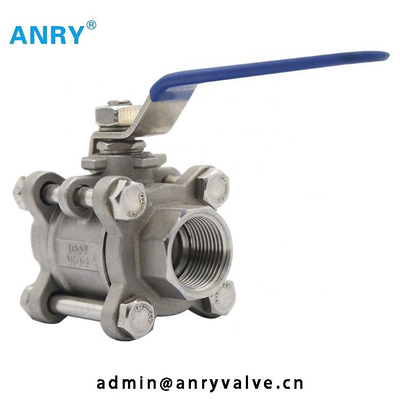

Class800~1500 Forged Steel Ball Valve
Standards Compliance
1. Design and manufacture conform to BS5351 MSS SP-118;
2. Connection ends conform to:
1) Scoket welded ends conform to ANSI B16.11; JB/T1751
2) Screw ends conform to ANSI B1.20.1; JB/T7306
3) Butt-welded ends conform to ANSI B16.25; JB/T12224
4) Flanged ends conform to ANSI B16.5; JB79
3. Test and inspection conform to: API 598; GB/T13927; JB/T9092
4. Structure features: Bolted bonnet; three-piece;
5. Materials conform to ANSI/ASTM;
6. Main materials: A105; LF2; F5; F11; F22; 304(L);316(L); F 347; F321; F51; Monel; 20Alloy.
Main Dimensions
|
Class
|
F.P
|
1/4
|
3/8
|
1/2
|
3/4
|
1
|
1-1/4
|
1-1/2
|
2
|
|
|
800-1500lb
|
L1
|
92
|
92
|
92
|
111
|
127
|
140
|
152
|
152
|
|
|
W
|
108
|
108
|
108
|
146
|
178
|
178
|
200
|
200
|
||
|
H
|
51
|
51
|
51
|
108
|
81
|
85
|
105
|
105
|
||
|
d
|
CL800
|
6
|
9
|
13
|
18
|
23
|
28
|
35
|
49
|
|
|
CL1500
|
6
|
9
|
13
|
19
|
25
|
32
|
38
|
49
|
||
|
Weight(kg)
|
2.3
|
2.4
|
2.5
|
3.4
|
5.4
|
6.4
|
11
|
13
|
||
|
2.3
|
2.4
|
2.5
|
3.7
|
5.8
|
6.8
|
11.5
|
13.7
|
|||
