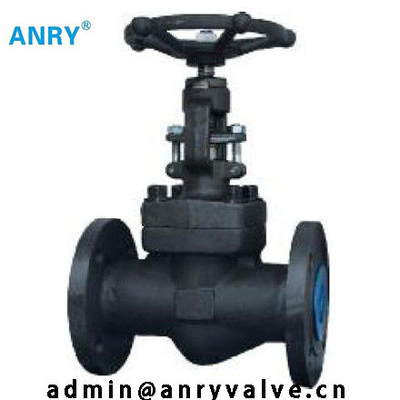

| Name: | Flanged End Globe Valve | Pressure: | 150Lb~600Lb |
|---|---|---|---|
| Application: | General | Standard Or Nonstandard: | Standard |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Media: | Water,Gas,Oil,gas;air;water;oil | Structure: | Control |
| Port Size: | 1/2"-12",DN15-DN65 | Material: | Stainless Steel,Forged |
| Body Material: | Carbon Steel,stainless Steel 316,SS 316 Or As Requested,316L;Alloy ; Brass; Carbon Steel. | Connection: | Female Thread,RF/BW,NPT |
| Standard: | ANSI BS DIN JIS,API598-2009,ISO | Size: | 1/2 Inch- 2 Inch |
| High Light: | forged steel globe valve,bw ball valve |
||
|
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
|
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
||
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
2
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
||
|
3
|
Bonnet Bolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
4
|
Pin
|
A276 420
|
A276 304
|
||
|
5
|
Gland
|
A276 410
|
A182 F304(L)
|
A182 F316(L)
|
|
|
6
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
7
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
8
|
Yoke Nut
|
A276 410
|
|||
|
9
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
10
|
Nameplate
|
SS
|
|||
|
11
|
Handwheel
|
A197
|
|||
|
12
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
||
|
13
|
Stem Packing
|
Flexible Graphite
|
PTFE
|
||
|
14
|
Bonnet
|
A105
|
A276 304
|
A182 F304(L)
|
A182 F316(L)
|
|
15
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
16
|
Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A273 316(L)
|
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3,CH3OOH etc
|
||
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
||
|
NPS
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
||
|
L(RF)L1(BW)
|
150
|
108
|
117
|
127
|
140
|
165
|
203
|
|
|
300
|
152
|
178
|
203
|
216
|
229
|
267
|
||
|
600
|
165
|
190
|
216
|
229
|
241
|
292
|
||
|
H(OPEN)
|
150,300
|
166
|
171
|
207
|
240
|
258
|
330
|
|
|
600
|
171
|
207
|
240
|
258
|
330
|
380
|
||
|
W
|
100
|
100
|
125
|
160
|
160
|
180
|
||
|
Weights
|
150
|
RF
|
4.5
|
6.9
|
9.8
|
13.5
|
19.5
|
28.0
|
|
BW
|
2.3
|
3.6
|
7.8
|
8.2
|
12.0
|
15.0
|
||
|
300
|
RF
|
4.8
|
7.7
|
11.0
|
16.8
|
21.2
|
32.6
|
|
|
BW
|
2.8
|
4.0
|
8.5
|
9.2
|
12.6
|
16.8
|
||
|
600
|
RF
|
5.6
|
7.8
|
12.5
|
17.0
|
23.5
|
38.8
|
|
|
BW
|
3.4
|
4.7
|
9.2
|
10.5
|
13.3
|
18.9
|
||
