Product Details:
Payment & Shipping Terms:
|
| Name: | Wafer Double Disc Check Valve | Pressure: | 150Lb~900Lb |
|---|---|---|---|
| Nominal Diameter: | 1/2″-44″ | Wenzhou Anry Valve Co.,Ltd. Is Located In Longwan,Wenzhou ,Zhejiang, China. Close To Wenzhou Yongqia: | ANSI, DIN, BS, JIS, GB |
| Media: | Water,oil,gas,Base | Material: | Casting,Stainless Steel,Carbon Steel,CF8=SS304 |
| Structure: | Check | Port Size: | 2''-44'',4"(DN100),customizable |
| Standard Or Nonstandard: | Standard | Standard: | DIN,JIS,BS,API,BSTP NPT BSP DIN |
| Connection: | Flange Ends,Welded,BW,RF | Body Material: | Stainless Steel,WCB |
| High Light: | CF8M double plate check valve,Stainless Steel double plate check valve,CF8M stainless steel wafer check valve |
||

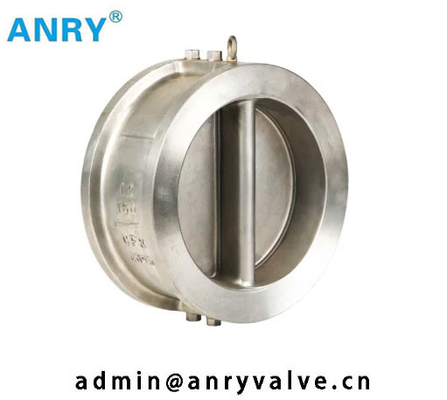

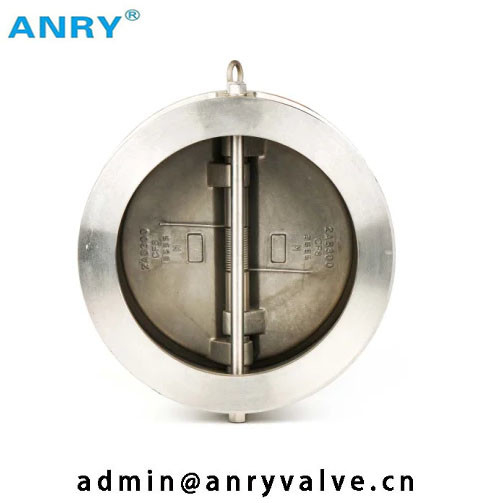

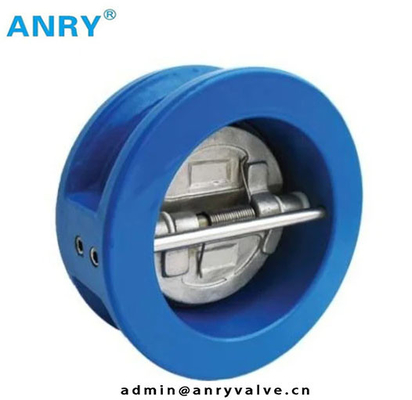

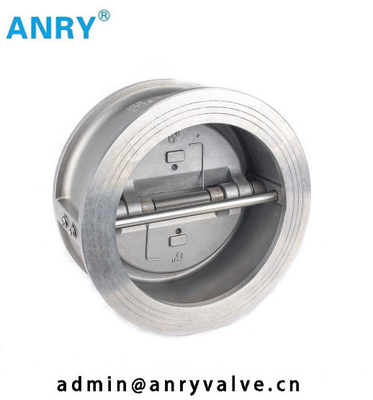

Cast Steel and Cast Iron Wafer Check Valves--duoble plate wafer check valve, single plate wafer check valve
Standard compliance
1) Design and manufacture: API6D, API594
2) Test and inspection: API598
3) Face to face dimensions: API594
4) Install between flanges: ANSI B16.5, B16.47 SERIES A & SERIES B, JIS, BS, DIN
Specifications:
1) Size: 1-1/2" to 60"
2) Class: 150LB to 2500LB
3) Type: Double plate or single plate, wafer type, lugged type, flanged type. Metal seat or soft seat.
4) Material: CARBON STEEL,STAINLESS STEEL, ALLOY STEEL, AL-BRONZE, CAST IRON etc. such as WCB, WCC, WC6, WC9,C59400,C59800,C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20, cast iron/ductile iron
Contact Person: Henry
Tel: +8615967798598
