Product Details:
Payment & Shipping Terms:
|
| Media: | Water,Oil,Gas | Power: | Manual |
|---|---|---|---|
| Pressure: | Medium Pressure,Low Pressure | Structure: | Gate |

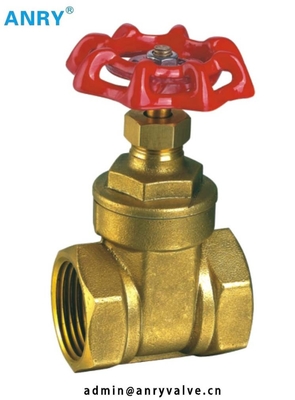

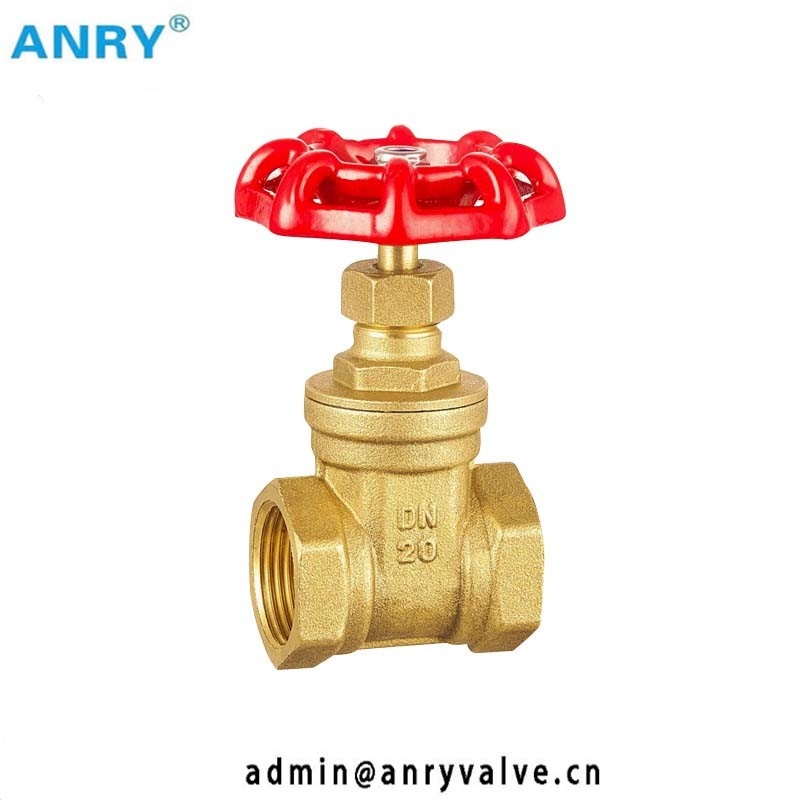

| Product Name: | GATE VALVE | Standard: | ANSI BS DIN JIS,DIN |
| Body Material: | Brass Or Bronze | Working Pressure: | 1.0-1.6Mpa (10-25bar) |
| Connection: | Female Thread | ||
| Highlight: | astm a352 carbon steel valves,astm a352 steel gate valves,DN50 carbon steel valves |
||
| Ball valve | |
| End Type | 1. Thread End:NPT, DIN259,DIN2999,BS 21,ISO288-1,ISO 7-1 |
| 2. Socket weld end | |
| 3. Butt Weld End | |
| Material | ASTM A351-CF8M (DIN 1.4408) Stainless steel |
| ASTM A351-CF8 (DIN 1.4308) Stainless steel | |
| ASTM A216-WCB (DIN 1.0619) Carbon steel | |
| Size | 1/8" - 4" |
| Features | 1.Forchemical and industrial applications. |
| 2. High quality investment casting body | |
| 3.Pressure temperature rating:1000WOG (pn63/(450 deg. F. | |
| 4.15% reinforced glassfibre Teflon seats. | |
| 5. Blow-out proof stem SS316. | |
|
6. 100% tested air- under water at 100 wog (6 bar) open & close position. |
|
Technical standard
-1. Normal pressure: 1.6Mpa
-2. Working medium: water, gas, oil
-3. Working temperature: -20ºC≤T≤120ºC
-4. Thread standard: ISO228
FAQ:
Q1: Can I have a sample before placing the order?
A: Yes, we would like to provide you samples for testing and checking before quantity purchasing
Q2: What is your MOQ order?
A: Usually 3000 for ordinary products, and 5000pcs for product needs new mold.
Q3.How to proceed an order for your products?
A: Firstly, pls let us know your requirments and application
Seconly, we provide quotation accordingly or suggestion
Thirdly, samples confirmation
Forth, place order and deposit and production arrangement.
