Product Details:
Payment & Shipping Terms:
|
| Material: | Casting C95800 | Structure: | Globe |
|---|---|---|---|
| Temperature Of Media: | Normal Temperature | Media: | Water/gas/oil/sewage |
| Port Size: | 2"-24" | Product Name: | FBE Blue Epoxy Cast Iron Angle Marine Globe Valve DIN3202 F32 |
| Nominal Pressure: | Painting | Working Pressure: | PN16 |
| Face To Face: | ASME B16.10, DIN3202; ANSI B 16.10 | ||

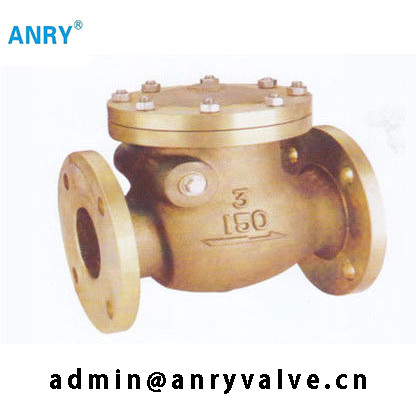

| High Light: | bronze globe valve flanged,swing check valve |
||
Structure
Regular Port
Bolted Bonnet
Outside Screw and Yoke(OS&Y)
Clockwise closing direction
Solid Disc(Plug, Ball/Spherical, Throttling)
Integer Seat
Backseat
Design:MSS-SP-80,BS 5154,JIS B2011
Butt Weld Ends to ASME B16.25; DIN 3239,EN12627
Flanged Ends to ANSI B 16.5 ; EN1092,DIN2543~DIN2547,AS2129
Body material: Bronze,Al bronze ( C95800, C83600, C84400, B62)
