Product Details:
Payment & Shipping Terms:
|

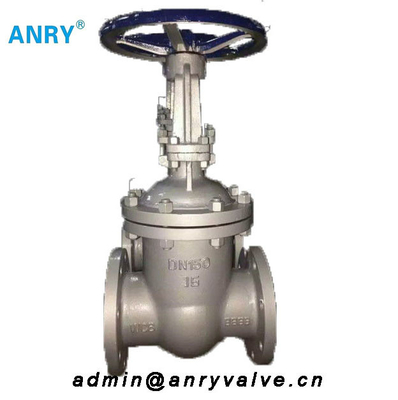

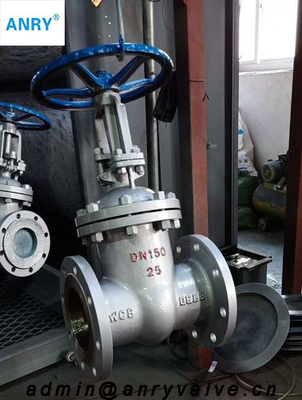

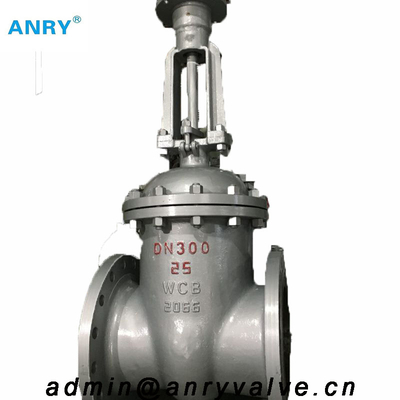

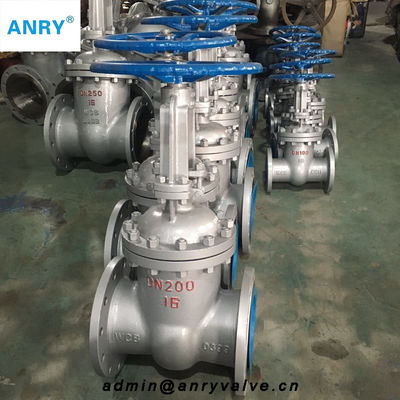

| Name: | Carbon Steel Gate Valve | Pressure: | PN16,PN25,PN40,PN63,PN100 |
|---|---|---|---|
| Size: | DN25-DN1200 | Material: | Steel20,GS-C25,SS304,SS316,CF8,CF8M,LF2 |
| Connection: | RF,BW,Flange,Welding | Operation: | Handwheel,gear |

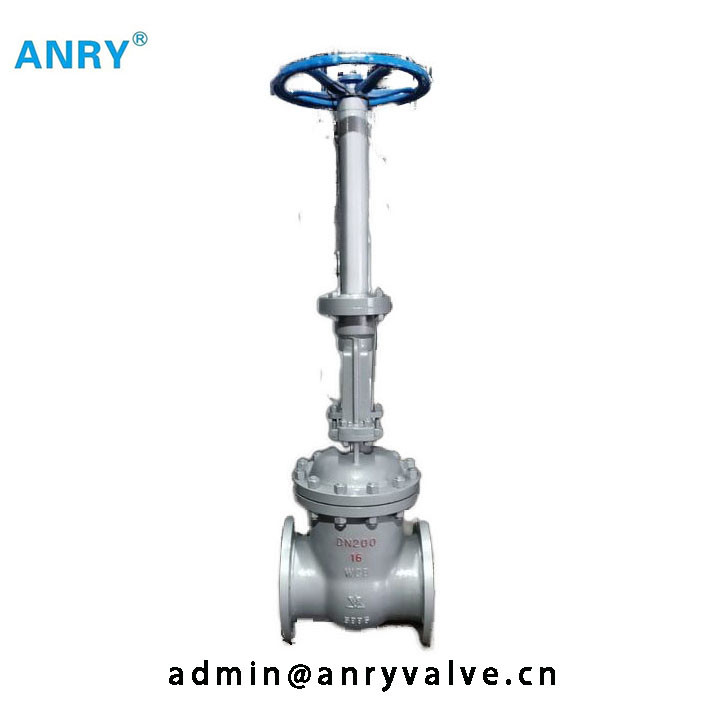

| High Light: | gear operated gate valve,extended stem gate valve |
||
Technical Specifications:
(1) Design Standard: GOST 5762-2002
(2) Face to Face Dimension: GOST 3706-93
(3) End Flange Dimension: GOST 12815-80 End BW Dimension: GB/T 12224
(4) Structures: Straight Pattern
(5) Material of Body: GS-C25, S.S 304, S.S 316
(6) Pressure Rating: PN16, PN25, PN40, PN63,PN160
(7) Test standard: GOST356-80
Feature:
– Straight pattern
– Outside Screw and York
– Bolted bonnet – Seat in stellite or 13%Cr
– Available with gear operator
– Flange Ends
– Butt-welding Ends
Actuation: can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc. Working temperature: from -46oC or -50oC (stainless steel constructions) and -29oC (carbon steel constructions) up to 600℃
