Product Details:
Payment & Shipping Terms:
|

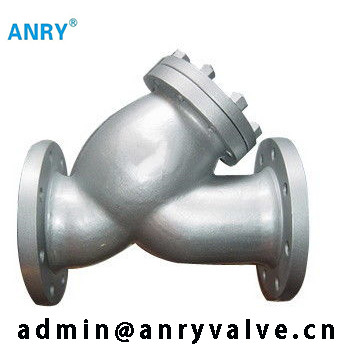

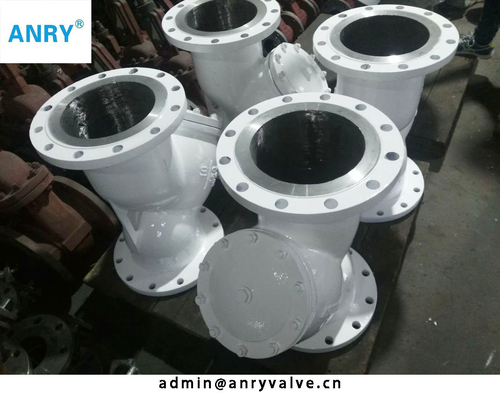

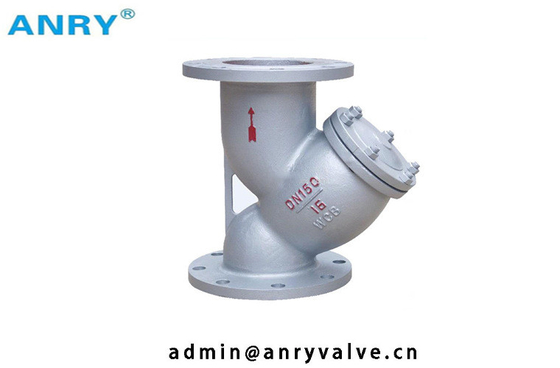

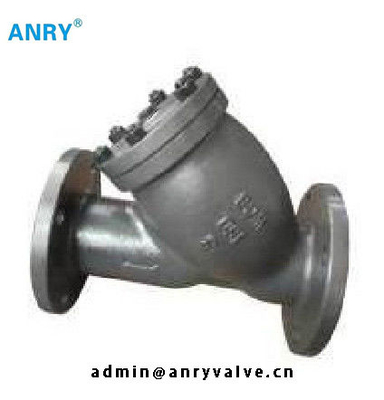

| Name: | Cast Steel Y-Strainer | Feature: | Renewable Strainer Density |
|---|---|---|---|
| DN: | 15 - 250 | Inspection And Test: | ISO 5208、DIN 3203 |
| High Light: | y pattern strainer,flanged wye strainer |
||
Flanged or butt welding ends
|
NO. |
Part name
|
ASTM Material
|
||
|
Carbon steel
|
18Cr-9Ni-2Mo
|
Carbon steel
|
||
|
1
|
Body
|
A216-WCB
|
A351-CF8M
|
A352-LCB
|
|
2
|
Bonnet cap
|
A216-WCB
|
A351-CF8M
|
A352-LCB
|
|
3
|
Screen
|
A240-304
|
A420-316
|
A240-304
|
|
4
|
Bonnet gasket
|
Graphite+3041)
|
PTFE
|
Graphite+3041)
|
|
DN |
L(RF
|
L(BW
|
D
|
D1
|
D2
|
n-d
|
B
|
F
|
H
|
Kg
|
|
15
|
120
|
120
|
95
|
65
|
45
|
4-14
|
16
|
2
|
85
|
4
|
|
20
|
140
|
140
|
105
|
75
|
58
|
4-14
|
18
|
2
|
95
|
5
|
|
25
|
150
|
150
|
115
|
85
|
68
|
4-14
|
18
|
2
|
110
|
6
|
|
32
|
170
|
170
|
140
|
100
|
78
|
4-18
|
18
|
2
|
125
|
8
|
|
40
|
190
|
190
|
150
|
110
|
88
|
4-18
|
18
|
3
|
145
|
10
|
|
50
|
215
|
215
|
165
|
125
|
102
|
4-18
|
20
|
3
|
155
|
12
|
|
65
|
250
|
250
|
185
|
145
|
122
|
8-18
|
22
|
3
|
175
|
18
|
|
80
|
285
|
285
|
200
|
160
|
138
|
8-22
|
24
|
3
|
210
|
22
|
|
100
|
300
|
300
|
235
|
190
|
162
|
8-26
|
24
|
3
|
230
|
32
|
|
125
|
380
|
380
|
270
|
220
|
188
|
8-26
|
26
|
3
|
270
|
50
|
|
150
|
495
|
495
|
300
|
250
|
218
|
8-26
|
28
|
3
|
300
|
70
|
|
200
|
545
|
545
|
375
|
320
|
285
|
12-30
|
34
|
3
|
385
|
124
|
|
250
|
605
|
605
|
450
|
385
|
345
|
12-33
|
38
|
3
|
535
|
170
|
