| Name: | Forged Steel Fixed Ball Valve | Test And Inspection: | API 598,API6D |
|---|---|---|---|
| Face To Face Dimensions: | ANSI B16.10,API 6D | Flanged Connection: | ANSI B16.5 |
| Material: | Stainless Steel,Casting,Forged Carbon Steel/stainless Steel,Alloy Steel | Structure: | Ball |
| Power: | Manual,Pneumatic,Worm Gear,Electrical Actuated | Media: | Water,gas,oil,gas/ Oil /water,Crude Oil&Natural Gas&acid Medium |
| Body Material: | Stainless Steel,WCB,CF8 CF8M,SS201 | Connection: | Flange Ends |
| Standard: | ANSI BS DIN JIS,DIN,ASTM,ASME B16.34,API 6D | Product Name: | API A182 F316 Flange Type Ball Valve Class 2500,API Stellite V11-225 Cobalt Valve Balls And Seats,ball Valve Price,china Supplier Api Float Ball Valve |
| Working Pressure: | 150LB Flanged Ball Valve,1.6MPa(200psi) | Type: | Trunnion Ball Valve |
| Highlight: | fixed ball valve,disc type check valve |
||

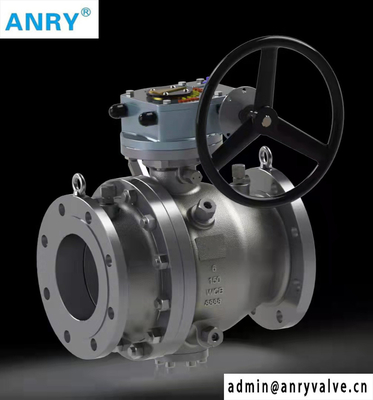

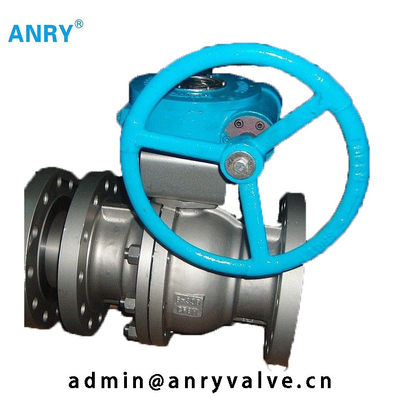

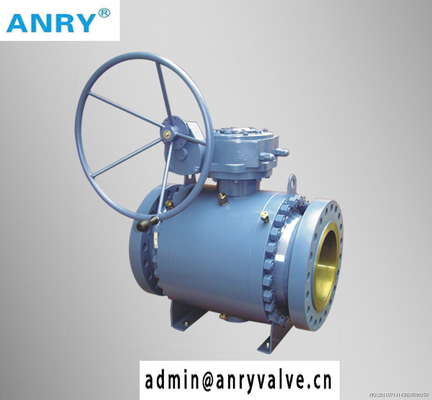

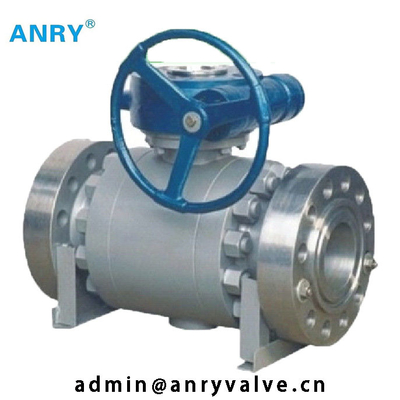

Class 150~1500 Forged Steel Fixed Ball Valve
Bolted cover or welded cover,three-piece Body,fixed Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A105N,A182 F304,A182 F316,A182 F304L,A182 F316L
Standards compliance
Design and manufacture: ANSI B16.34,API 608,API 6D,BS5351
Face to face dimensions: ANSI B16.10,API 6D
Flanged connection: ANSI B16.5
Butt welded: ANSI B16.25
Fie-safe: API 607~API 6FA
Test and inspection: API 598,API6D
|
Standard material specifications
|
|||||
|
Part name
|
Material
|
||||
|
Body
|
A105
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
Body cap
|
A105
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
Ball
|
A105+Nip
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
Stem
|
A105+Nip
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
Seat
|
A105+Nip
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
Seat ring
|
PTFE/RPTFE/NYLON
|
||||
|
Fixed turnnion
|
A105+Nip
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
O-ring
|
VITON
|
VITON
|
VITON
|
VITON
|
VITON
|
|
Contact spring
|
17-7PH/In conel
|
In conel
|
In conel
|
In conel
|
In conel
|
|
Cover bolt
|
A193 B7
|
A193 B8
|
A193 B8M
|
A193 B8M
|
A193 B8M
|
|
Cover nut
|
A194 2H
|
A194 8
|
A194 8M
|
A194 8M
|
A194 8M
|
|
Bearing
|
SF-1
|
SF-1
|
SF-1
|
SF-1
|
SF-1
|
CLASS 150~1500 FORGED STEEL FIXED BALL VALVE
| Dimensions & weights | ||||||||||||
| Class 150 | ||||||||||||
| Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| L(RTJ) | mm | 178 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 |
| H | mm | 153 | 195 | 213 | 500 | 568 | 605 | 662 | 725 | 770 | 970 | 935 |
| H1 | mm | 139 | 178 | 191 | 220 | 289 | 318 | 382 | 430 | 470 | 489 | 528 |
| L0 | mm | 400 | 600 | 850 | 400* | 400* | 400* | 400* | 800* | 800* | 600* | 500* |
| Weight | mm | 30 | 50 | 90 | 203 | 289 | 450 | 588 | 676 | 864 | 764 | 911 |
| Dimensions & weights | ||||||||||||
| Class 300 | ||||||||||||
| Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| L | mm | 216 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 911 |
| L(RTJ) | mm | 232 | 299 | 321 | 419 | 518 | 584 | 664 | 778 | 854 | 930 | 1010 |
| H | mm | 153 | 195 | 213 | 500 | 569 | 605 | 662 | 725 | 770 | 970 | 935 |
| H1 | mm | 139 | 178 | 191 | 220 | 289 | 318 | 382 | 430 | 470 | 489 | 528 |
| L0 | mm | 600 | 1250 | 1300 | 400* | 400* | 400* | 400* | 800* | 800* | 600* | 500 |
| Weight | mm | 30 | 50 | 90 | 203 | 289 | 450 | 588 | 676 | 864 | 764 | 911 |
| Dimensions & weights | ||||||||||||
| Class 600 | ||||||||||||
| Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| L | mm | 292 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
| L(RTJ) | mm | 295 | 359 | 435 | 562 | 663 | 790 | 841 | 892 | 994 | 1095 | 1200 |
| H | mm | 153 | 195 | 213 | 500 | 569 | 645 | 702 | 750 | 815 | 970 | 1065 |
| H1 | mm | 119 | 145 | 180 | 220 | 289 | 318 | 382 | 430 | 470 | 489 | 561 |
| L0 | mm | 600 | 1250 | 1300 | 400* | 400* | 457* | 457* | 800* | 800* | 600* | 600* |
| Weight | mm | 32 | 64 | 122 | 267 | 521 | 773 | 1118 | 1700 | 1970 | 1218 | 1646 |
| Dimensions & weights | ||||||||||||
| Class 900 | ||||||||||||
| Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| L | mm | 368 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1210 | 1321 |
| L(RTJ) | mm | 372 | 384 | 460 | 613 | 780 | 841 | 968 | 1038 | 1140 | 1232 | 1334 |
| H | mm | 162 | 205 | 239 | 591 | 700 | 700 | 820 | 950 | 990 | 1030 | 1200 |
| H1 | mm | 119 | 145 | 180 | 213 | 254 | 327 | 368 | 442 | 483 | 523 | 615 |
| L0 | mm | 600 | 1250 | 1300 | 450* | 600* | 750* | 750* | 600* | 600* | 600* | 600* |
| Weight | mm | 48 | 78 | 138 | 275 | 547 | 847 | 1224 | 1676 | 2083 | 2694 | 3515 |
| Dimensions & weights | ||||||||||||
| Class 1500 | ||||||||||||
| Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| L | mm | 368 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 |
| L(RTJ) | mm | 372 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 |
| H | mm | 197 | 254 | 291 | 655 | 660 | 735 | 860 | 950 | 1065 | 1235 | 1275 |
| H1 | mm | 119 | 145 | 180 | 213 | 278 | 384 | 440 | 442 | 483 | 576 | 615 |
| L0 | mm | 600 | 1250 | 1300 | 760* | 450* | 450* | 660* | 600* | 750* | 750* | 750* |
| Weight | mm | 55 | 97 | 162 | 328 | 668 | 936 | 1408 | 1861 | 2392 | 3220 | 4491 |
