Product Details:
Payment & Shipping Terms:
|

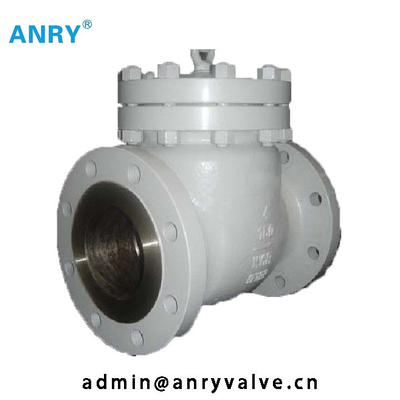

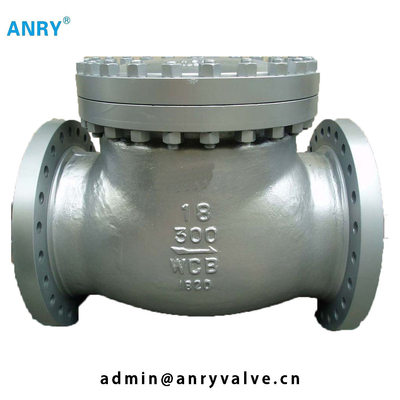

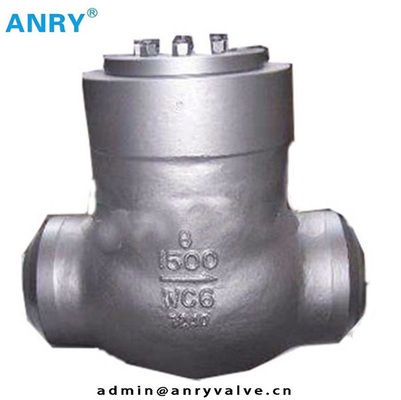

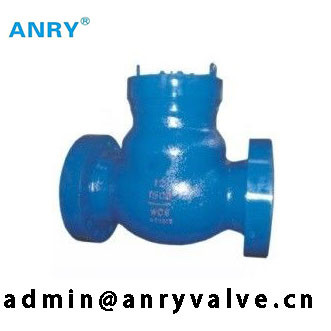

| Name: | Swing Check Valve | Pressure: | 900Lb~1500Lb |
|---|---|---|---|
| NPS: | 3/8"-2" | Application: | General |
| Material: | Stainless Steel,Casting,Alloy Steel | Structure: | Control |
| Temperature Of Media: | Medium Temperature,High Temperature,Normal Temperature,-196℃-680℃ | Media: | Water,gas,oil,gas/ Oil /water,Crude Oil&Natural Gas&acid Medium |
| Body Material: | Stainless Steel,WCB,CF8 CF8M,SS201 | Connection: | Flange Ends,BW Ends |
| Standard: | ANSI BS DIN JIS,DIN,ASTM,ASME B16.34,API 6D | Size: | Dn25-dn300 |
| Medium: | Water Oil Gas,corrosion Liquid Etc,Water,oil,gasoline | Working Pressure: | 1.6Mpa,PN16,150LB Flanged Ball Valve,1.6MPa(200psi) |
| High Light: | fixed ball valve,disc type check valve |
||
|
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
|
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
||
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
2
|
Seat
|
A276 410
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
3
|
Swing Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
4
|
Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
5
|
Hinge
|
A105
|
A182 F22
|
A182 F304 L
|
A182 F316(L)
|
|
6
|
Pin
|
A276 420
|
A182 F304
|
A182 F316
|
|
|
7
|
Pontlevis
|
A105
|
A182 F22
|
A182 F304 L
|
A182 F316(L)
|
|
8
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
||
|
9
|
Bonnet
|
A105
|
A182 F22
|
A182 F304 L
|
A182 F316(L)
|
|
10
|
Bolt
|
A193 B7
|
A193 B16
|
A193 B8M
|
A193 B8M
|
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3,CH3OOH etc
|
||
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
||
|
NPS
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
|
L
|
800Lb
|
79
|
79
|
92
|
111
|
120
|
120
|
140
|
|
900~1500Lb
|
92
|
111
|
111
|
120
|
120
|
140
|
178
|
|
|
H
|
800Lb
|
61
|
61
|
78
|
84
|
101
|
120
|
133
|
|
900~1500Lb
|
79
|
79
|
79
|
97
|
105
|
120
|
140
|
|
|
Weights
|
800Lb
|
1.1
|
1.0
|
1.9
|
3.9
|
4.5
|
7.3
|
10.0
|
|
900~1500Lb
|
3.1
|
3.0
|
3.6
|
4.3
|
6.1
|
8.8
|
12.6
|
|
