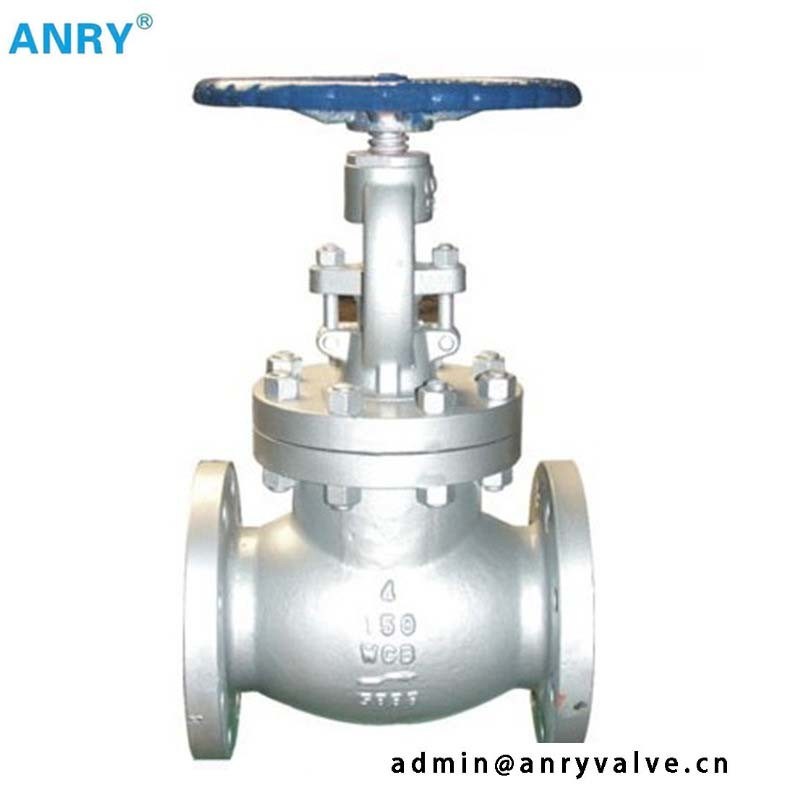

Product Details:
|
| Name: | Pressure-seal Globe Valve | Pressure: | 900Lb~2500Lb |
|---|---|---|---|
| Application: | General | Structure: | Safety |
| High Light: | 900Lb CS Gate Valve,900Lb ss globe valve,3/4" ss globe valve |
||
|
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
|
|
Type A105T
|
Type A182 F22
|
Type A182 F304
|
Type A182 F316(L)
|
||
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
2
|
Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
3
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
4
|
Pressure Seat
|
A105
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
5
|
Pressure Ring
|
A182 F304 L
|
A182 F316L
|
||
|
6
|
Bonnet
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
7
|
Pin
|
A276 420
|
A182 F304
|
||
|
8
|
P.S.Washer
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
9
|
P.S.Lock Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
10
|
Stem Packing
|
Corrugated SS + Graphite
|
SS+PTFE
|
||
|
11
|
Gland
|
A276 420
|
A182 F304
|
||
|
12
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
||
|
13
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
14
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
15
|
Yoke Nut
|
A276 410
|
|||
|
16
|
Handwheel
|
A197
|
|||
|
17
|
Nameplate
|
SS
|
|||
|
18
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3CH3OOH etc
|
||
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
||
|
NPS
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
|
L
|
900~1500Lb
|
140
|
140
|
140
|
178
|
178
|
216
|
|
2500Lb
|
186
|
183
|
186
|
232
|
232
|
279
|
|
|
H(OPEN)
|
333
|
333
|
333
|
408
|
408
|
524
|
|
|
W
|
160
|
160
|
180
|
200
|
250
|
280
|
|
|
Weights
|
900Lb~1500Lb
|
11.2
|
10.5
|
10.1
|
21.0
|
19.6
|
40.4
|
|
2500Lb
|
12.3
|
11.6
|
10.8
|
28.0
|
26.4
|
43.8
|
|
